How to Make a Glass Bowl with a Napkin in Blender

Natudema

Editor

posted on 12 years ago — updated on 1 second ago

1
views

A glass bowl and a napkin seem to go well together, and this is also a creative project. If you want to make it look extra-nice, why not do it in Blender? Just follow the steps below.

Steps

Making the Bowl

Be sure to switch to the Cycles rendering engine. By default Blender uses its internal rendering engine which is old. The newer Cycles renderer is better and allows use of Graphics card to help render. In the top Menu Bar, you should see a drop-down menu. Click it to switch from "Blender Internal" rendering engine to the "Cycles" engine.

If you don't have the default cube on your screen, go to File >> New >> Reload Start-Up File (CTRL + N).Blender reload start up file.png

Be sure the cube is selected and delete it. Select the cube by right clicking it, and press "X" and click Yes to delete it.

Go to Add >> Mesh >> UV Sphere. This will put a sphere in the middle of your screen. If it is not in the middle it means your 3D cursor is not in the middle. If that's the case then press Shift + s and choose cursor to center. Then Select your Sphere and again press Shift + s and choose selection to cursor.

Zoom in closer using your scroll wheel.

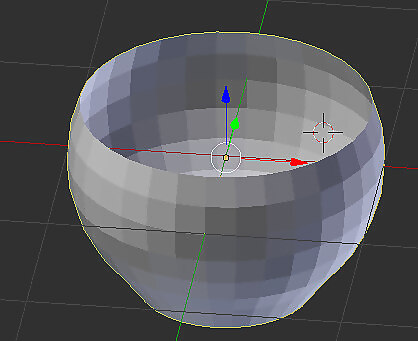

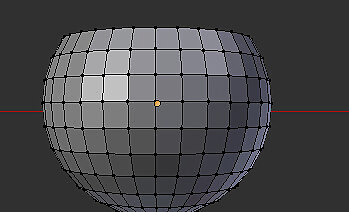

Cut off the top of the sphere. To do this:Blender top off of sphere.png Go to Object Mode >> Edit Mode. This will turn the sphere orange.Blender Edit Mode.png Choose the 3D view that you want. It is the icon directly beside the Object Mode button.Blender wireframe.png Change the perspective to orthographic. Go to View >> Persp/Ortho. This will change it to orthographic and make it easier to work with. Pressing the 5 on your number pad will change the perspective as well. Change the way you see it by pressing the 1 on your number keypad. You can change your view by pressing any of the keys shown here.Camera view.png Deselect the sphere by pressing A. Press the B key. This will bring up the selection pointer. Select the top few gridlines at the top of the sphere. From your perspective, it will appear to be three gridlines. In actuality, there is a 4th one at the very top that you can't see.Selecting gridlines.png Delete the vertices. Do this by selecting X and then Vertices. If something happens and you don't get all of the vertices, just repeat until the top of your sphere is leveled off.Blender delete vertices.png

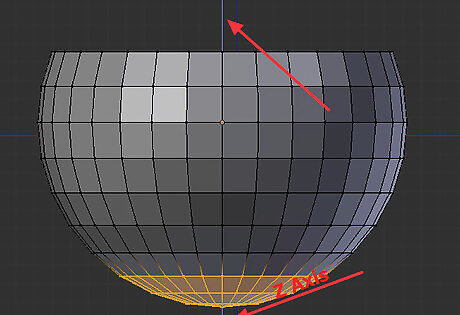

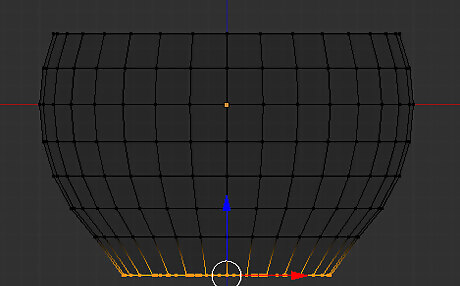

Flatten the bottom of your bowl. Press B and select the bottom few gridlines. Then select Scale in your Mesh Tools. Press Z. This will make it so that it can only be changed on the Z axis.Blender Z axis.png Press 0 and then press Enter. B > Make selection > Scale > Z > 0 > Enter (It's that quick! A repeat of the prior two lines.)

Check your progress.

Change the 3D view back to Solid and then the Edit Mode back to Object Mode.

Using your scroll key, press it down and swivel the bowl so that you can see in the top.

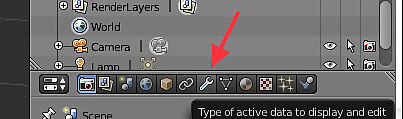

Select the Object Modifier Button (the wrench). Add a Modifier. Select Solidify.

Thickness 07.pngChange the thickness to 0.07.

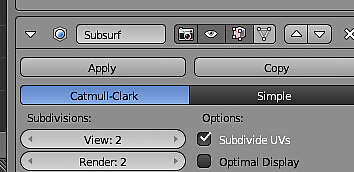

Increase the number of subdivisions in your bowl. This will give it a much smoother appearance. Add a Modifier. Select Subdivision Surface. Subdivision View and Render.pngGo to the Subdivision Surface (SubSurf) window. Change View and Render to 2. Blender shading smooth.pngIn your Object Tools, select Shading >> Smooth.

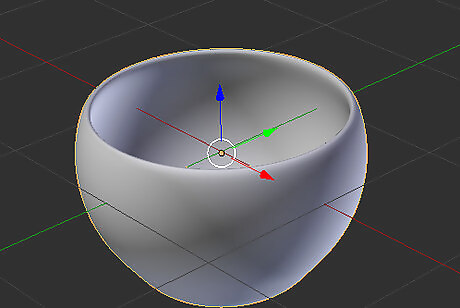

Check your progress. This is what it should look like now.

Blender Material Modifier.pngChange the material of the glass. Click on the Material Modifier icon.

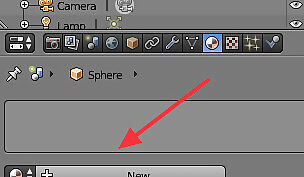

New Material modifier.pngSelect the New bar that you see. This will open up the Material Modifier dialog box. Cycles Render Material.pngIf the dialog box doesn't look like this, go to the Render button and change it to Cycles Render. Then it will look like this.

Go the Surface section >> Add Nodes >> Diffuse BSDF >> Glass BSDF.

Making a 'Table' for the Bowl

Select Add >> Mesh >> Plane.

Press Scale >> 5 (on the keypad) >> Enter. Then press 1. This will enlarge the surface and give you a front view so that you can move it to the right place on the cup. Move your image around to see if there are any gaps.

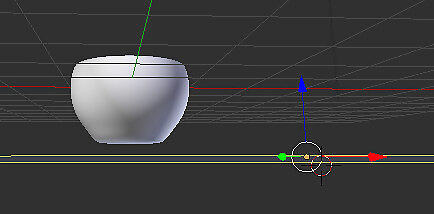

Click on the blue arrow and move the plane to just below the bowl.

Set the material for the plane. Be sure the Material Modifier is selected, then press New. You can make any changes that you want. For the purposes of this tutorial, the default Diffused BSDF and the color white are selected.

Be sure to save your project if you haven't already.

Making the Napkin

Select Add >> Mesh >> Plane.

Press Scale >> 3 >> Enter. This will enlarge the napkin but not as large as the table.

Press Rotate >> Z (restricting the movement to the Z axis), 45 (on the keypad) >> Enter. This will turn it diagonally to the bowl.

Press Rotate >> X (X axis) >> 70 >> Enter.

Press 5 to change the view.

Position the napkin over the cup.

Turn your project sideways by pressing 3.

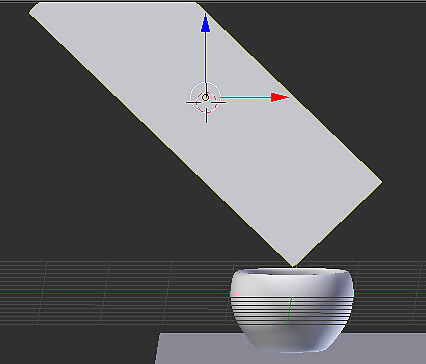

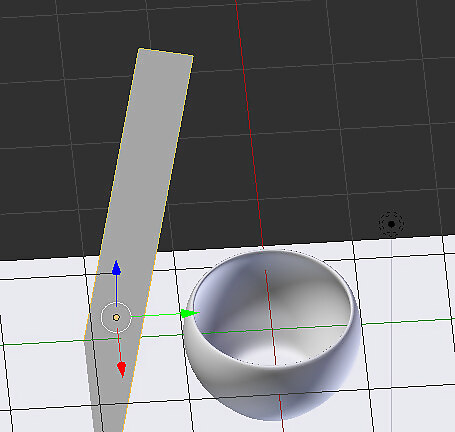

Use the green arrow to move the corner of the napkin just to the inside of the left lip of the bowl, as seen here. Since the napkin will be draped over the bowl, this will make it so that that corner falls inside of it.

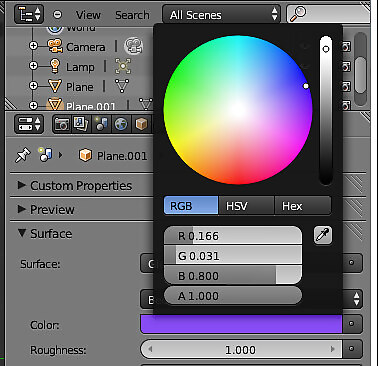

Set the material of the napkin. Click on the Material Modifier >> Add. Then change Diffused BSDF to Glossy BSDF. Set the Roughness to 1. Changing the color.pngChoose the color. It can be whatever color you want. If you want to change your current view of the napkin, instead of waiting for the render, go to Settings >> Viewport color and change its color. Otherwise, just wait for the render.

Start bending your cloth. Go from Object Mode to Edit mode. Be sure that your napkin is selected by pressing A. You will know it is selected if it is orange. Select Subdivide. Go to the Cuts option then 50 >> Enter. Go back to Object Mode. Add Modifiers. The order is very important. Click on the Wrench again >> Add Modifier >> Cloth. Add Modifier >> Solidify. Be sure the thickness is set to 0.01. Add Modifier >> Subdivision Surface. Set both of the View and Render values to 2. Go to Mesh Tools (on the left) >> Shading >> Smooth. Start making the adjustments for the cloth modifier.

Blender physics.pngSelect the Physics Modifier button. If you don't see it, then make the modifier panel wider.

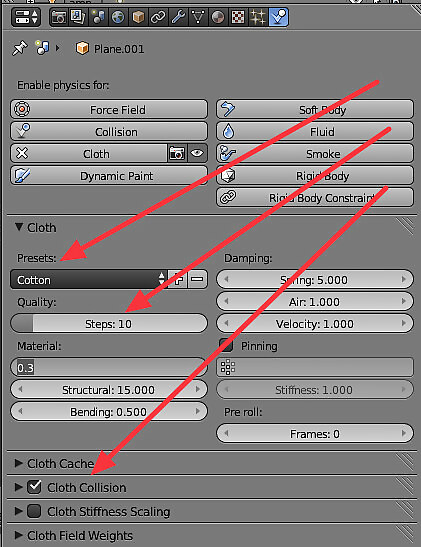

Start modifying the properties of the napkin. Select the Cotton Preset. Change the Steps to 10. Cloth dynamics.pngBe sure that Cloth Collision is checked. This allows the cloth to interact with the bowl. Open up the Cloth Collision section and make sure that Self Collision is also marked. This allows the cloth to interact with itself.

Right click on the bowl. Look at the panel on the right (you should still be in the Physics Modifier panel). Select Collision.

Repeat the above process for the table surface.

Select the right arrow in the animation toolbar and watch your napkin as it falls to the table. It will take a little while.

Once it has completed, go through the animations, slide by slide, until you find an image that you like.

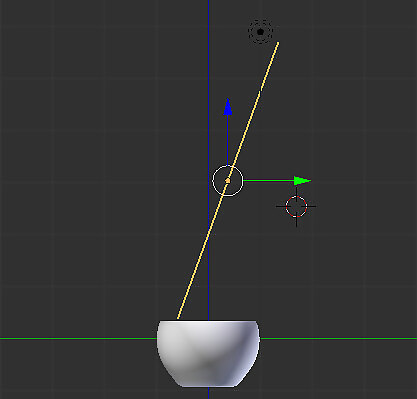

Set up the light source. Lamp selected.pngZoom away until you can see the lamp. Right click on it to select it. Select View >> 1 (Keypad). This will give you a front view. Centered lamp.pngUsing the RED arrow, move the lamp so that it is centered over the bowl. Using the blue arrow, lower the lamp so that it is closer to the bowl. Change to a side view. Using the green arrow, move it so that it is just a little in front of the bowl.

Object data button.pngSet up the options for the light source. Click on the Object Data button. Select Point. It should be the default. Change the Size to 5. Change the Strength to 2000. (This can be altered, depending on your desired look). [[Image:Blender strength 2000.png|center|

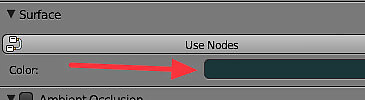

Select the background color. To do that, click on the World button. Change the background color.pngChange the background color by changing this color. You will notice that your options are darker than your normal color options. For the purposes of this tutorial, black will be used.

Rotate the scene so that you can see it better. You want to be able to see into the bowl.

Increase the size of the surface/table. You want it to fade to black in the final image. Increasing the size will do this. Be sure the surface is selected, then select Scale >> 20 >> Enter.

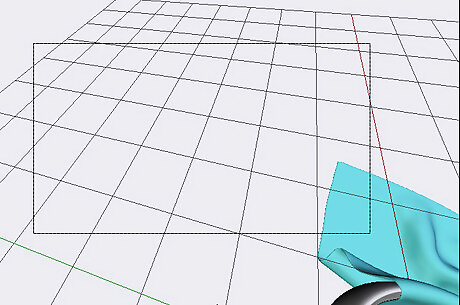

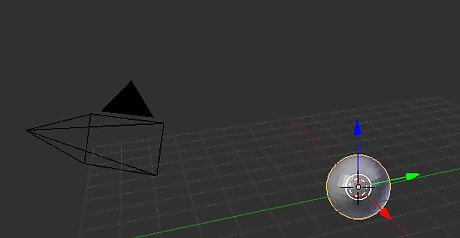

Set up the camera view. Go to View >> Camera. As you can see here, the view is not what it should be.

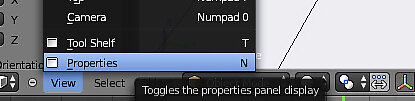

Change the camera view properties. This will allow you to change what you see through that particular view. Blender view properties.pngGo to View >> Properties. Blender view properties 2.pngIn the panel that comes up, select Lock Camera to View. Click on View >> Properties again, to hide the panel. From this viewpoint, move the bowl and napkin around until the surface that the bowl is on first appears on the horizon. From there, move the bowl and napkin the way you want it. Blender Bowl and napkin 2.png

Save your work. It's always a good idea to save your work before rendering, in case something goes wrong.

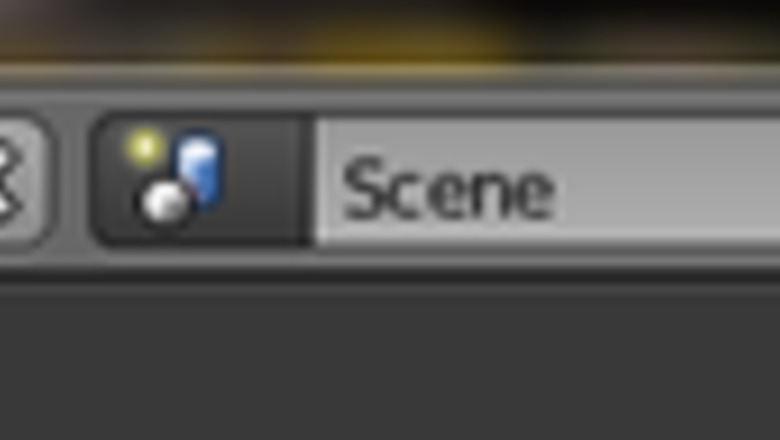

Render icon.pngSelect the Render icon. Render with the default settings for now. This will take a while, so start it, and maybe take a break.

Once 'complete', check out your first render and make sure it looks like you want it to.[[Image:Blender complete sample render.png|center|

Go to Samples, under Sampling and change it to a higher number. The number was changed to 2000 in this instance. The higher the number, the better the result. However, it will also take longer.[[Image:Sampling 2000.png|center]
