How to Install Wood or Concrete Dock Posts in the Water

• To install wood posts (pilings), stand the piling in the desired spot and use a water jet to clear away sand and silt so it sinks 4–6 ft (1.2–1.8 m) below the lakebed.
• To pour concrete posts, push a PVC pipe 2 ft (0.61 m) into the lakebed, then bail out the water and remove sand and silt with a post-hole digger.
• Then, pour 10 in (25 cm) of concrete into the pipe and lower in your wood piling. Continue pouring concrete around the piling and let it cure for 3 days.

Installing Pressure-Treated Wood Pilings

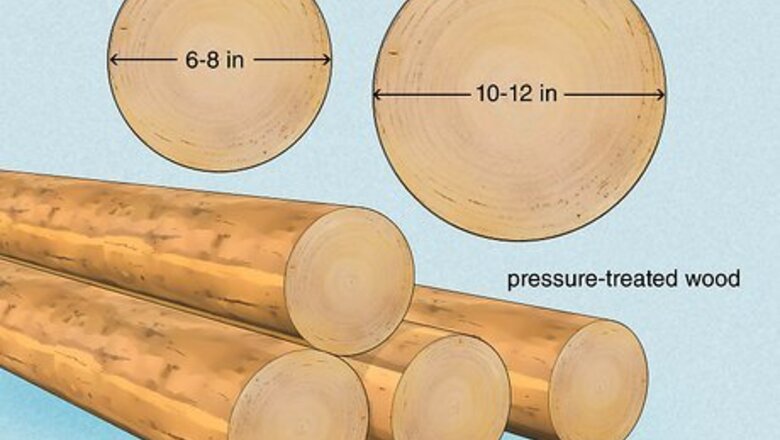

Choose round dock pilings made of pressure-treated wood. Pressure-treated wood has been preserved with special chemicals that help it last longer when it’s exposed to harsh outdoor conditions, like constantly being waterlogged or subjected to tiny wood-eating organisms. Round pilings aren’t cut to expose the interior of the wood, making them hardier than square-cut ones. Pressure-treated wood is also the most cost-effective option. Other options for pilings include plastic-coated wood and heavy-duty aluminum. Buy pilings 6–8 in (15–20 cm) in diameter if your dock will weigh less than 10,000 lb (4,500 kg). If it’ll weigh more, choose 10–12 in (25–30 cm) pilings. Get enough pilings to place one about every 10 ft (3.0 m) along the dock on both sides to support its weight.

Rent a 2–3 in (5.1–7.6 cm) water jetter from a home improvement store. Often, your local home improvement store will allow you to rent high-powered tools like a water jetter (also called a hydro jet) for a short amount of time. This prevents you from paying full price for a tool you won’t use very often—water jetters can be pricy! These high-powered water pumps typically run on gasoline and come with either a 2 in (5.1 cm) or 3 in (7.6 cm) diameter hose. Either size will work, but since the hose gets heavy when it’s full of water, the 2 in (5.1 cm) hose may be easier to use. The cost of renting a water jet will vary depending on your location and the length of time you need it. A 1,500 PSI jet might be $100 to $200 per day. If you don’t have access to a water jetter, use a power washer or high-pressure garden hose instead. The process will probably take longer this way, though.

Spray paint your pilings at 12 in (30 cm) intervals to monitor their depth. As you start to sink the pilings, it can be hard to keep track of how far they’ve gone into the ground. By marking them with spray paint, it’s easier to make sure your pilings are all installed at the same depth.

Cut the pilings tall enough to hold the dock 3–4 in (7.6–10.2 cm) above water. Ideally, your dock will hover above the highest level the water will reach (taking tides, flooding, or heavy rainfall into account). Use a long measuring tape or a marker float to find the depth of the water from the lakebed to the surface. Then, add 4 in (10 cm) plus the length of piling that will go underground (4–6 ft (1.2–1.8 m)) to find the total height. For example, if the water is 6 ft (1.8 m) deep, you’d need pilings that are between about 124 in (3.1 m) and 148 in (3.8 m) tall. Cut the beams a little longer than you think you’ll need them to be. You can always trim them later if needed. Even in a body of water that isn’t affected by tides, the water level may still fluctuate. If you’re not sure what the maximum water line is, ask other pier or dock owners in your area.

Stand the first piling in the water and push it into the lakebed. If possible, recruit 1-2 strong people to help you hold the piling in place (try bribing a few friends with lemonade and the promise of spending sunny days on the water!). Once the post is in the right location, gently push or hammer it a few inches or so into the lakebed for some stability before you jet the sand and silt away. If you don’t have anyone who can help you, use sturdy pieces of wood and a pulley system to create a tripod that can lift and hold the pilings in place. If the lakebed is hard or compact, use the water jetter to “pre-jet” a starter hole to help the piling settle.

Aim the water jetter at the bottom of the piling and turn on the pump. The water will blow out of the hose with enough force to push the sand and silt out from under the piling. As this is happening, guide the piling further down into the earth until you reach the desired depth. If you need to, move the tip of the hose from side to side so the piling can go in evenly. If the force of the water isn’t enough to remove the sand, attach a PVC pipe with a 1 in (2.5 cm) diameter to the end of the hose to increase the pressure. Some people attach a metal brace to the piling 4–6 ft (1.2–1.8 m) above the bottom so it doesn’t sink further into the lakebed. This is optional. Use the water jetter to push some of the dirt back into place around the piling after it’s set. This helps stabilize the piling even more. Repeat this process for the remaining pilings.

Pouring Concrete Pilings

Measure the total length of PVC pipe you’ll need for every piling. Measure from the bed beneath the water to the highest level the water reaches in your area. Depending on how soft the earth is below the water, add another 1–2 ft (0.30–0.61 m) to that length (closer to 2 ft (0.61 m) for soft, silty beds). Multiply this length by the number of beams you will need to get the total length of PVC. When you’re choosing the pilings that go inside of the concrete, add another 3–4 in (7.6–10.2 cm) to account for the height of the pier or dock above the water.

Purchase heavy-duty PVC with a diameter of 12–18 in (30–46 cm). For standard 8 ft (2.4 m) docks, a PVC pipe with a diameter of 12 in (30 cm) and an interior post with a diameter of 4 in (10 cm) is sufficient. If your dock is longer than 8 ft (2.4 m), start with a PVC pipe of 18 in (46 cm) and and posts that are about 6 in (15 cm).

Drive the PVC pipe about 2 ft (0.61 m) into the lakebed. If you can’t push the pipe into the ground by hand, lay a spare piece of wood on top of the PVC and hit it squarely with a sledgehammer until you reach the desired depth. Spray paint the pipe in 1 ft (0.30 m) increments before placing it so you can tell how deep it is.

Remove water and mud from the pipe with a bucket and post-hole digger. Bail out the water that’s inside of the PVC pipe with a bucket, then use a post-hole digger to remove sand, silt, or mud from the bottom of the pipe. The pipe should be clear down to the bottom. While you can use a pump to clear out the pipe, doing it by hand is safer, since you don’t have to have electrical equipment near the water. If the ground is very hard, you may need to rent a mini-excavator.

Mix quick-set concrete in buckets according to the package directions. It’s easy to mix quick-set concrete, like Quikrete, by hand—just pour the concrete mix into a bucket and dig a small hole in the mix, then add in water according to the instructions. The amount of concrete you’ll need depends on the size of your project. For a PVC pipe with a diameter of 12 in (30 cm) and a post of 4 in (10 cm), estimate about 2 bags of Quikrete per 1 ft (0.30 m) of height. If your pipe is 18 in (46 cm) in diameter and your post is 6 inches (15 cm), you’ll need about 5 bags per 1 ft (0.30 m). It may be a good idea to rent a concrete mixer for this project.

Pour 10 in (25 cm) of concrete into the pipe, then insert a post. Lower the post into the PVC pipe and push it down into the concrete mix. By pouring concrete into the pipe first, the post will be more stable when you put it into place. The PVC pipe will keep the water out of the concrete as it cures.

Continue to pour concrete around the piling. Keep working until you fill the PVC pipe all the way to the maximum water line. Work slowly to ensure you don’t end up with any air pockets in the concrete. This part of the process will take awhile, so it’s probably a good idea to get some friends to help you fill and carry buckets of concrete. You may have some excess pipe at the top. Cut this off with a reciprocating saw after the concrete dries if needed.

Repeat for each post, then let the concrete cure for 3-4 days. No matter how excited you are about having a pier to lounge on, it’s important to let the concrete completely cure before you continue building your structure. After you poured all of that concrete, though, you’ll probably be glad to have a couple of days to rest before you start building the framework!
